Early detection of weak points
Identify possible insulation damage before it leads to critical failures.
Reliably test the insulation resistance of stators and rotors with insulation testers from AUTFORCE.
While many insulation testers on the market have been developed for quickly checking the insulation resistance of stators, AUTFORCE goes one step further. Our insulation endurance tester offers you the opportunity to test stators for their insulation quality over long periods of time and thus check or prove their durability. This is necessary for an initial quality inspection or for further development.

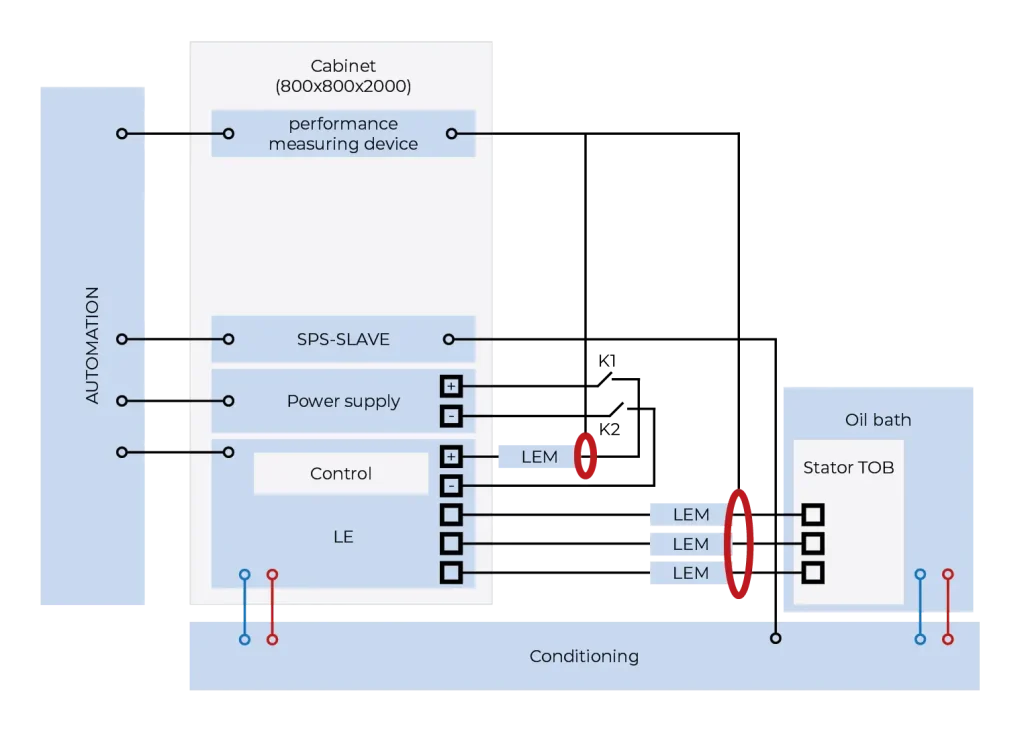

This new product makes it possible to measure stator insulation under realistic operating conditions. The stator is placed in an automated temperature-controlled oil bath to ensure its conditioning. The tester offers the possibility to flexibly parameterize the effective current and the switching frequency (PWM), while the edge steepness du/dt (up to 20kV/µs) can be adjusted according to the test requirements. A special feature is the check of the total current (observation of the star point) of the stator phases, whereby the test run is automatically interrupted and checked for damage if the insulation is damaged.
Contact usThere are only a few solutions on the market that can perform comprehensive stator insulation measurement over long periods of time. Conventional testers only provide a snapshot of insulation resistance, whereas our insulation endurance tester simulates stators and rotors under real conditions and checks long-term performance. This makes it possible to detect insulation damage in good time and thus significantly improve the service life and quality of your components.
The project
At the request of a leading global manufacturer of drive and control technology, we were able to support the implementation of an inverter end-of-line (EOL) station. A functional test cabinet from AUTFORCE was supplied for this project. This contains the intelligence and control of the test sequences as well as the necessary measuring devices.
Read moreContacting and safety-compliant test housing.
Read moreTesting the inverter at the end of assembly.
